This function provides a simplified interface to modeling multi-value traits using growthSS. Output from this should be passed to fitGrowth to fit the specified model.

Usage

mvSS(
  model = "linear",
  form,
  sigma = NULL,
  df,
  start = NULL,
  pars = NULL,
  type = "brms",
  tau = 0.5,
  hierarchy = NULL,
  spectral_index = c("none", "ari", "ci_rededge", "cri550", "cri700", "egi", "evi",
    "gdvi", "mari", "mcari", "mtci", "ndre", "ndvi", "pri", "psnd_chlorophyll_a",
    "psnd_chlorophyll_b", "psnd_caroteniods", "psri", "pssr_chlorophyll_a",
    "pssr_chlorophyll_b", "pssr_caroteniods", "rgri", "rvsi", "savi", "sipi", "sr",
    "vari", "vi_green", "wi", "fvfm", "fqfm")
)

Arguments

model

A model specification as in growthSS.

form

A formula similar to label | value ~ time + id/group where label is a column of histogram bins, value is the counts within those bins, time is an optional time variable, id identifies an individual, and group contains the treatment groups. If the time variable is not included then the individual variable should also not be included.

sigma

Distributional models passed to growthSS.

df

Data passed to growthSS.

start

Starting values or priors, passed to growthSS.

pars

Parameters to vary, passed to growthSS.

type

Backend to use, passed to growthSS.

tau

Quantile to model, passed to growthSS.

hierarchy

Formulae describing any hierarchical models, see growthSS.

spectral_index

Optionally, a spectral index from those calculated by PlantCV. If this is given then the appropriate truncation and model family (if applicable) will be included for the index you are using without you having to write it in the formula.

Value

A named list of plots showing prior distributions that growthSS would use, optionally with a plot of simulated growth curves using draws from those priors.

See also

fitGrowth for fitting the model specified by this list.

Examples

set.seed(123)
mv_df <- mvSim(dists = list(rnorm = list(mean = 100, sd = 30)), wide = FALSE)
mv_df$group <- rep(c("a", "b"), times = 900)
mv_df <- mv_df[mv_df$value > 0, ]
mv_df$label <- as.numeric(gsub("sim_", "", mv_df$variable))

ss1 <- mvSS(
  model = "linear", form = label | value ~ group, df = mv_df,
  start = list("A" = 5), type = "brms", spectral_index = "none"
)
# \donttest{
mod1 <- fitGrowth(ss1, backend = "cmdstanr", iter = 1000, chains = 1, cores = 1)
#> Start sampling
#> Running MCMC with 1 chain...
#>
#> Chain 1 Iteration:   1 / 1000 [  0%]  (Warmup)
#> Chain 1 Informational Message: The current Metropolis proposal is about to be rejected because of the following issue:
#> Chain 1 Exception: student_t_lpdf: Scale parameter is inf, but must be positive finite! (in '/tmp/RtmpUvwz4B/model-1a7d69b33fea.stan', line 76, column 6 to column 71)
#> Chain 1 If this warning occurs sporadically, such as for highly constrained variable types like covariance matrices, then the sampler is fine,
#> Chain 1 but if this warning occurs often then your model may be either severely ill-conditioned or misspecified.
#> Chain 1
#> Chain 1 Informational Message: The current Metropolis proposal is about to be rejected because of the following issue:
#> Chain 1 Exception: student_t_lpdf: Scale parameter is inf, but must be positive finite! (in '/tmp/RtmpUvwz4B/model-1a7d69b33fea.stan', line 76, column 6 to column 71)
#> Chain 1 If this warning occurs sporadically, such as for highly constrained variable types like covariance matrices, then the sampler is fine,
#> Chain 1 but if this warning occurs often then your model may be either severely ill-conditioned or misspecified.
#> Chain 1
#> Chain 1 Informational Message: The current Metropolis proposal is about to be rejected because of the following issue:
#> Chain 1 Exception: student_t_lpdf: Scale parameter is inf, but must be positive finite! (in '/tmp/RtmpUvwz4B/model-1a7d69b33fea.stan', line 76, column 6 to column 71)
#> Chain 1 If this warning occurs sporadically, such as for highly constrained variable types like covariance matrices, then the sampler is fine,
#> Chain 1 but if this warning occurs often then your model may be either severely ill-conditioned or misspecified.
#> Chain 1
#> Chain 1 Informational Message: The current Metropolis proposal is about to be rejected because of the following issue:
#> Chain 1 Exception: student_t_lpdf: Location parameter is -nan, but must be finite! (in '/tmp/RtmpUvwz4B/model-1a7d69b33fea.stan', line 76, column 6 to column 71)
#> Chain 1 If this warning occurs sporadically, such as for highly constrained variable types like covariance matrices, then the sampler is fine,
#> Chain 1 but if this warning occurs often then your model may be either severely ill-conditioned or misspecified.
#> Chain 1
#> Chain 1 Informational Message: The current Metropolis proposal is about to be rejected because of the following issue:
#> Chain 1 Exception: student_t_lpdf: Scale parameter is inf, but must be positive finite! (in '/tmp/RtmpUvwz4B/model-1a7d69b33fea.stan', line 76, column 6 to column 71)
#> Chain 1 If this warning occurs sporadically, such as for highly constrained variable types like covariance matrices, then the sampler is fine,
#> Chain 1 but if this warning occurs often then your model may be either severely ill-conditioned or misspecified.
#> Chain 1
#> Chain 1 Iteration: 100 / 1000 [ 10%]  (Warmup)
#> Chain 1 Iteration: 200 / 1000 [ 20%]  (Warmup)
#> Chain 1 Iteration: 300 / 1000 [ 30%]  (Warmup)
#> Chain 1 Iteration: 400 / 1000 [ 40%]  (Warmup)
#> Chain 1 Iteration: 500 / 1000 [ 50%]  (Warmup)
#> Chain 1 Iteration: 501 / 1000 [ 50%]  (Sampling)
#> Chain 1 Iteration: 600 / 1000 [ 60%]  (Sampling)
#> Chain 1 Iteration: 700 / 1000 [ 70%]  (Sampling)
#> Chain 1 Iteration: 800 / 1000 [ 80%]  (Sampling)
#> Chain 1 Iteration: 900 / 1000 [ 90%]  (Sampling)
#> Chain 1 Iteration: 1000 / 1000 [100%]  (Sampling)
#> Chain 1 finished in 1.9 seconds.

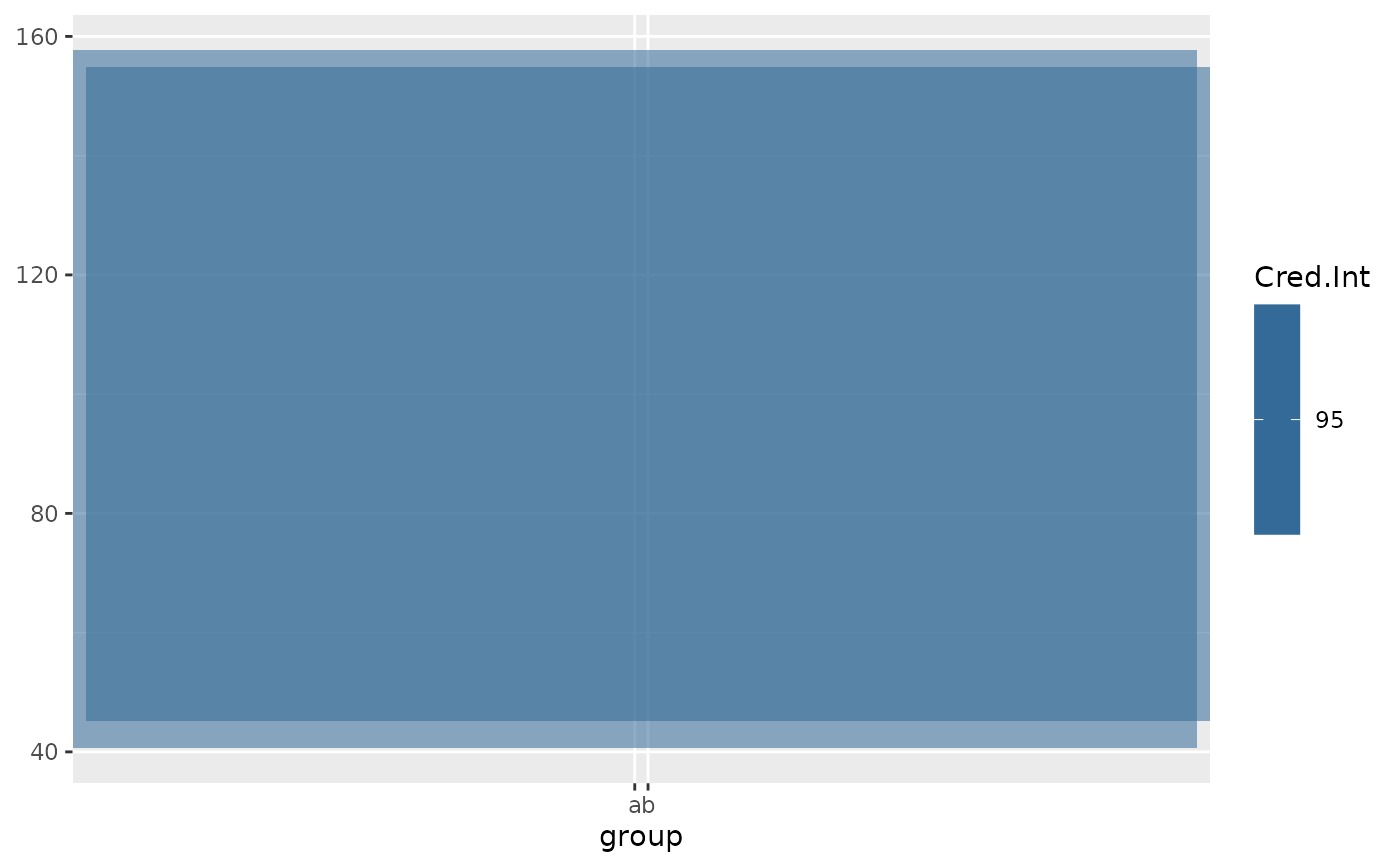

growthPlot(mod1, ss1$pcvrForm, df = ss1$df)

# }

# when the model is longitudinal the same model is possible with growthSS

m1 <- mvSim(
  dists = list(
    rnorm = list(mean = 100, sd = 30),
    rnorm = list(mean = 110, sd = 25),
    rnorm = list(mean = 120, sd = 20),
    rnorm = list(mean = 135, sd = 15)
  ),
  wide = FALSE, n = 6
)
m1$time <- rep(1:4, times = 6 * 180)
m2 <- mvSim(
  dists = list(
    rnorm = list(mean = 85, sd = 25),
    rnorm = list(mean = 95, sd = 20),
    rnorm = list(mean = 105, sd = 15),
    rnorm = list(mean = 110, sd = 15)
  ),
  wide = FALSE, n = 6
)
m2$time <- rep(1:4, times = 6 * 180)
mv_df2 <- rbind(m1, m2)
mv_df2$group <- rep(c("a", "b"), each = 4320)
mv_df2 <- mv_df2[mv_df2$value > 0, ]
mv_df2$label <- as.numeric(gsub("sim_", "", mv_df2$variable))
ss_mv0 <- mvSS(
  model = "linear", form = label | value ~ group, df = mv_df2,
  start = list("A" = 50), type = "brms", spectral_index = "ci_rededge"
)
ss_mv0 # non longitudinal model setup
#> linear brms skew_normal model:
#>
#> pcvr formula variables:
#> Outcome: label | resp_weights(value) + trunc(lb = -1, ub = Inf)
#> Group: group
#>
#> Model Formula:
#> label | resp_weights(value) + trunc(lb = -1, ub = Inf) ~ A
#> A ~ 0 + group
#>
#> Data:
#>   id group variable value time label
#> 1  1     a    sim_1     1    1     1
#> 2  2     a    sim_1     1    2     1
#> 3  3     a    sim_1     1    3     1
#> ...
#> (5119 rows)

ss_mv1 <- mvSS(
  model = "linear", form = label | value ~ time | group, df = mv_df2,
  start = list("A" = 50), type = "brms", spectral_index = "ci_rededge"
)
ss_mv1
#> skew_normal: linear brms skew_normal model:
#>
#> pcvr formula variables:
#> Outcome: label | resp_weights(value) + trunc(lb = -1, ub = Inf)
#> X: time
#> Group: group
#>
#> Model Formula:
#> label | resp_weights(value) + trunc(lb = -1, ub = Inf) ~ A * time
#> sigma ~ 0 + group
#> alpha ~ 0 + group
#> A ~ 0 + group
#>
#> Data:
#>   id group variable value time label
#> 1  1     a    sim_1     1    1     1
#> 2  2     a    sim_1     1    2     1
#> 3  3     a    sim_1     1    3     1
#> ...
#> (5119 rows)
ss_mv2 <- growthSS(
  model = "skew_normal: linear",
  form = label | resp_weights(value) + trunc(lb = -1, ub = Inf) ~ time | group,
  df = mv_df2, start = list("A" = 50)
)
ss_mv2
#> skew_normal: linear brms skew_normal model:
#>
#> pcvr formula variables:
#> Outcome: label | resp_weights(value) + trunc(lb = -1, ub = Inf)
#> X: time
#> Group: group
#>
#> Model Formula:
#> label | resp_weights(value) + trunc(lb = -1, ub = Inf) ~ A * time
#> sigma ~ 0 + group
#> alpha ~ 0 + group
#> A ~ 0 + group
#>
#> Data:
#>   id group variable value time label
#> 1  1     a    sim_1     1    1     1
#> 2  2     a    sim_1     1    2     1
#> 3  3     a    sim_1     1    3     1
#> ...
#> (5119 rows)
# ignoring environments and other such details these are identical except for the
# function call.
unlist(lapply(names(ss_mv1), function(nm) {
  if (!identical(ss_mv1[[nm]], ss_mv2[[nm]],
    ignore.environment = TRUE,
    ignore.srcref = TRUE
  )) {
    if (!identical(as.character(ss_mv1[[nm]]), as.character(ss_mv2[[nm]]))) {
      nm
    }
  }
}))
#> [1] "call"

# \donttest{
if (rlang::is_installed("mnormt")) {
  m2 <- fitGrowth(ss_mv1, backend = "cmdstanr", iter = 1000, chains = 1, cores = 1)
  growthPlot(m2, ss_mv1$pcvrForm, df = ss_mv1$df)
}
# }
